Infrared technology

A videoscope with infrared light is specially designed to work in dark or low-light environments by using infrared light for illumination. Here are some details:

Infrared LEDs:

The device is usually equipped with several infrared LEDs that emit light in the infrared range.
This light is outside the visible spectrum for the human eye, but is detected by special sensors in the videoscope.

Visibility and use:

Since infrared light is invisible to us, it does not interfere with natural processes in sensitive environments (e.g., during nighttime operations or in areas where discreet lighting is required).
At the same time, it enables clear image capture, as the sensor reacts to IR radiation and thus delivers a sharp image even in complete darkness.

Advantages:

Discreet lighting: Ideal for situations where visible light sources are undesirable.
Improved image quality: IR lighting ensures uniform illumination and clear images without distracting reflections in visible light.

Overall, infrared light in a videoscope allows detailed insights to be gained even in complete darkness or poor lighting conditions without having to rely on conventional visible light sources.

Technical Data

Device (handset + display)

Size: 360x160x60mm
Display: 5.7 inch FHD, touch screen
Resolution: 1980x1080 P
Slots: Micro SD card (up to 512GB), HDMI, Type C
Operation: >4h, battery, mains connection
IP protection class: IP54
Operating temperature: -20°C~70°C
Ambient temperature: -20°C~80°C

System

2D measurement function
High resolution
Touchscreen
Dual system
Joystick navigation

Recordings: Image:JPEG / Video: MP4 Languages: German, English, French, Italian, etc.

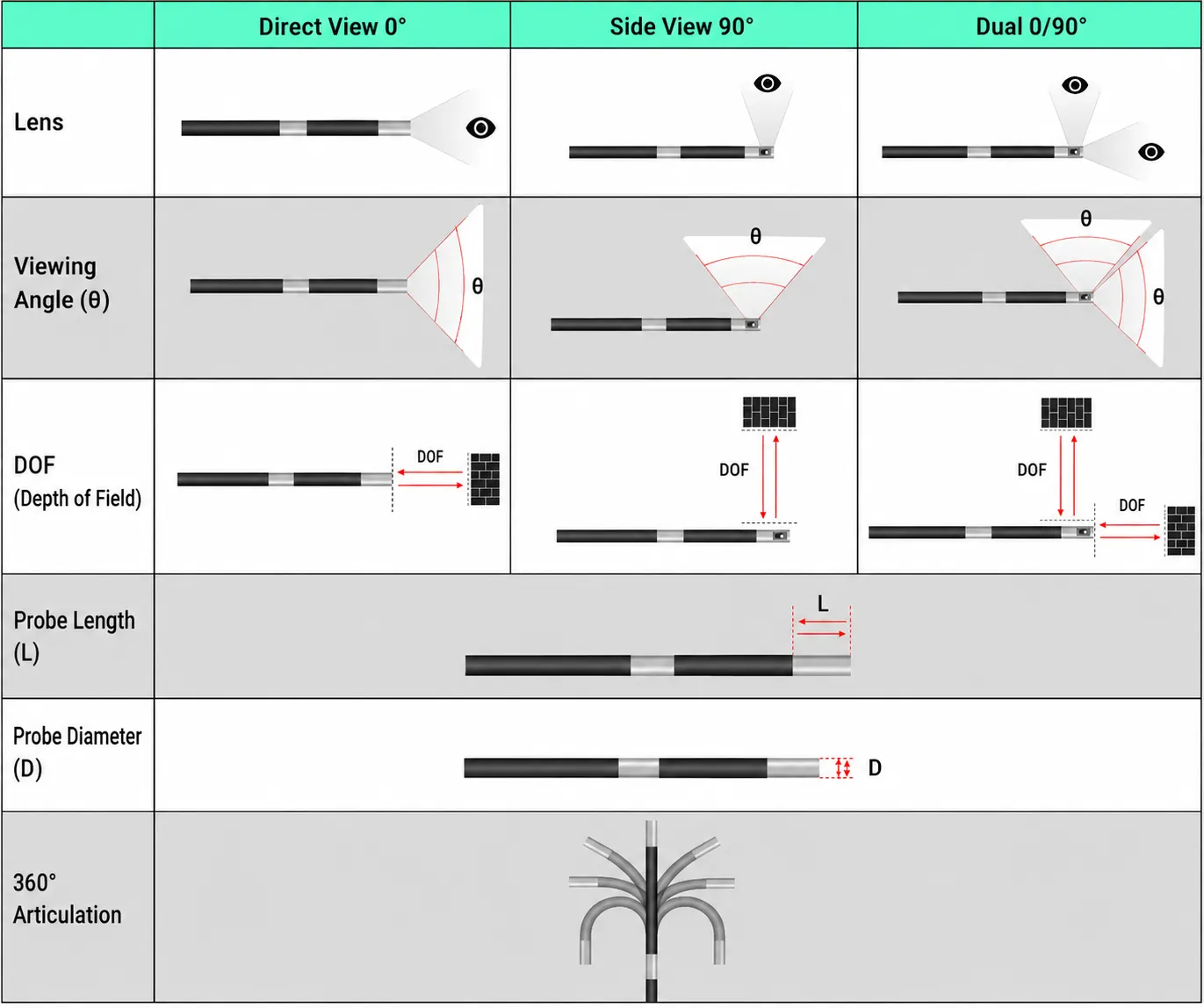

Lens

Field of view (DoV): direct 0° / side view 90° / dual 0° and 90°
Field of view (FoV): 75° / 84° / 120°
Depth of field (DoF): 50-inf.
Pixels: 1 megapixel
Illumination system: Fiber optics.
Light/illumination: Infrared light, combination of infrared and white light.
Illumination type: Infrared illumination (wavelength spacing: 10m / 940nm without red illumination / 850nm with red illumination)

Probe

Length: 1m – 6m Diameter: 6.0mm / 8.0mm Light (L): 13±0.5mm Direction of movement: 360° articulation Lighting system: Fiber optics. White light fiber optic lighting. Light/illumination: Infrared light, combination of infrared and white light. IP protection class: IP67 Operating temperature: -20°C~70°C Material: Flexible (tungsten wire mesh) Special feature: Probe replaceable

Scope of delivery

Video endoscope (control unit + probe)
Rechargeable battery
Carrying case
Memory card
32 GB USB flash drive
Tripod
Data cable
HDMI cable
Charger
Warranty card
Operating instructions
