The EVi5.7 ZTY is a sophisticated industrial video endoscope. It features a robust 5.7-inch touch display and a dual lens for front and side viewing. The braided tungsten wire is drop-proof and wear-resistant. With 360° articulation, complex workpieces can be inspected with precision. Interchangeable probes (customizable up to 30 m in length) enable flexible application options. The endoscope offers features such as high-temperature warning and Wi-Fi transmission.
Light sources
Light plays a central role in many areas, from inspection and quality control to medical research and industrial manufacturing. To provide the perfect light for every application, we offer a wide range of high-quality light sources.
Our LED lights combine efficiency, durability, and flexibility. With their high energy efficiency and wide range of color temperatures, they are the perfect choice for anyone looking for reliable and sustainable lighting solutions. No matter which light source you choose, we have the right solution for your specific requirements. See the quality of our products for yourself and work with us to create the ideal light for your work.
UV LED lamps
are ideal for precise examinations and detection tasks. They deliver UV light at the optimum intensity, ensuring reliable results whether in materials testing, forensics, or restoration.
LED flashlights
offer a versatile lighting solution for a wide range of applications. Thanks to their slim design and high luminosity, they are perfect for tight or hard-to-reach areas. They are robust, durable, and guarantee uniform illumination.
Cold light sources
For applications that require particularly cool and uniform light, our **cold light sources** are the ideal choice. They provide intense illumination without the heat generation of traditional light sources, making them particularly gentle on heat-sensitive materials and processes.
Technical Data |
Device (handset + display)Size: 375x175x78mm Display: 6-inch industrial-grade LCD screen Resolution: 1980x1080 P Slots: TF card (32GB) Supports up to 128 GB, HDMI port, Micro-USB, headphone jack Operation: >8h, 18650 batteries, mains connection IP protection class: IP54 Operating temperature: -20°C~50°C Ambient temperature: -20°C~60°C Relative humidity: Max 90%, no condensation Weight: 3.9kg (weight with battery) |
SystemOperating system: Multifunctional Operation: Navigation buttons, two camera and video buttons Recording: Image: JPEG / Video: AVI Image control: Freeze, zoom, photograph, mirror, video playback, analog ruler function, WiFi support Languages: German, English, French, Russian, Spanish, Italian, Polish, Chinese, Japanese, Ukrainian, and other languages |

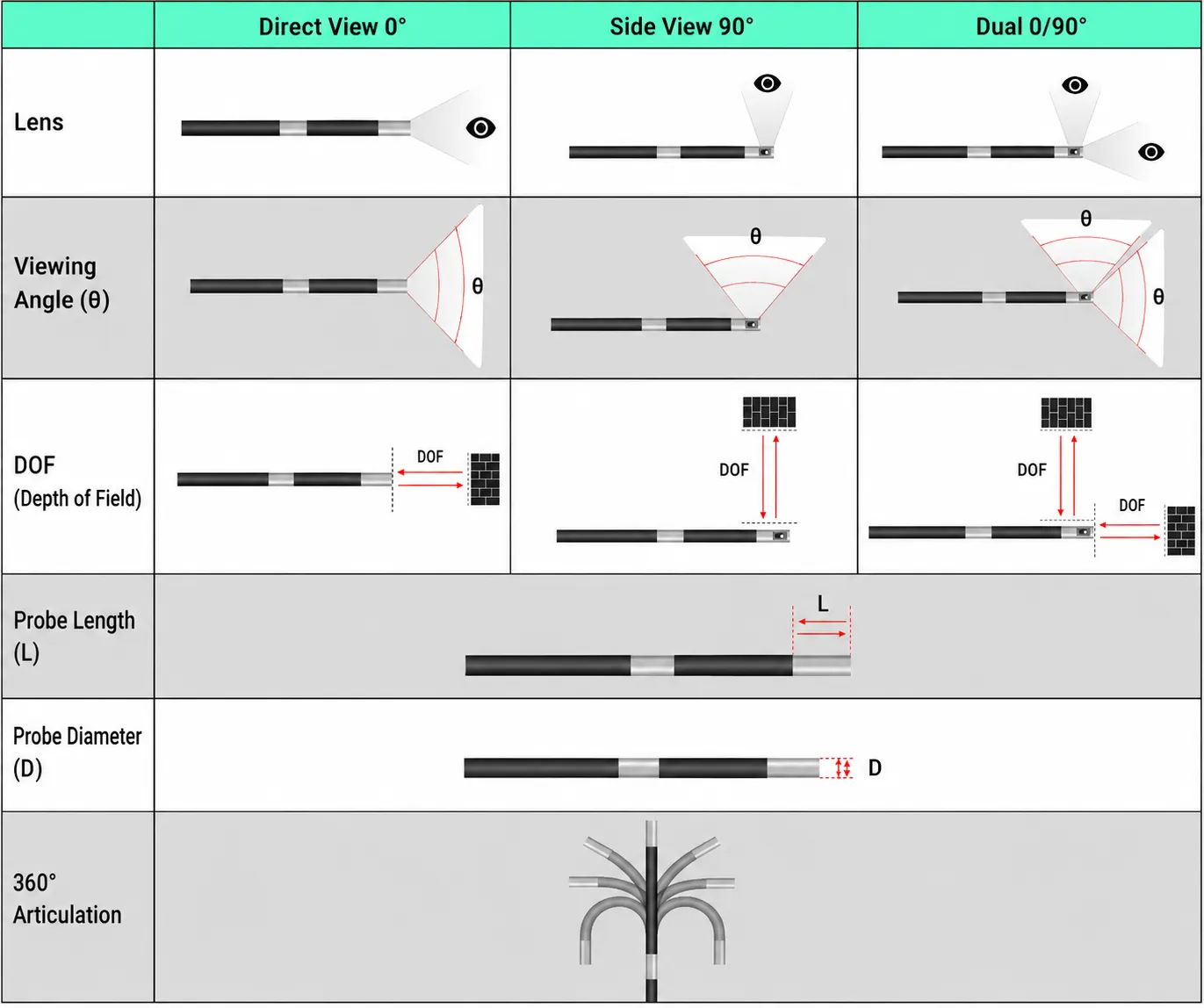

LensField of view (DoV): direct 0° / side view 90° / dual 0° and 90° Field of view (FoV): 75° / 84° / 120° Depth of field (DoF): 50-inf. Pixels: 1 megapixel Illumination system: Fiber optics. Light/illumination: Infrared light, combination of infrared and white light. Illumination type: Infrared illumination (wavelength range: 10m / 940nm without red illumination / 850nm with red illumination) |
ProbeLength: 1m – 6m |
Scope of delivery
|
