The EVi5 ZK is a sophisticated industrial video endoscope. It features a robust 5-inch display and a dual lens for front and side viewing. The braided tungsten wire is drop-proof and wear-resistant. The 360° articulation allows complex workpieces to be inspected with precision. Interchangeable probes enable flexible application options. The endoscope offers features such as high-temperature warning and Wi-Fi transmission.
Products:
We are your trusted partner in the sale and distribution of high-quality video endoscopes. Our product range includes both flexible and rigid models in various lengths, with different probes, lenses, and viewing angles to meet all your requirements.
Video endoscopes / videoscopes
These modern devices are equipped with high-resolution cameras that deliver excellent image quality. They are perfect for inspections in hard-to-reach areas and enable detailed visual examination. Our endoscopes are available in both flexible and rigid designs. They offer a precise view of the area under examination and are ideal for medical, industrial, and technical applications.
Rigid endoscopes / borescopes
Our special rigid endoscopes are ideal for direct visual inspection. The image is transmitted via a lens system that provides a precise view of the object being inspected. The light is transported from a cold light source via fiber optic light guides. They are ideal for use in medicine, aviation, and industry.

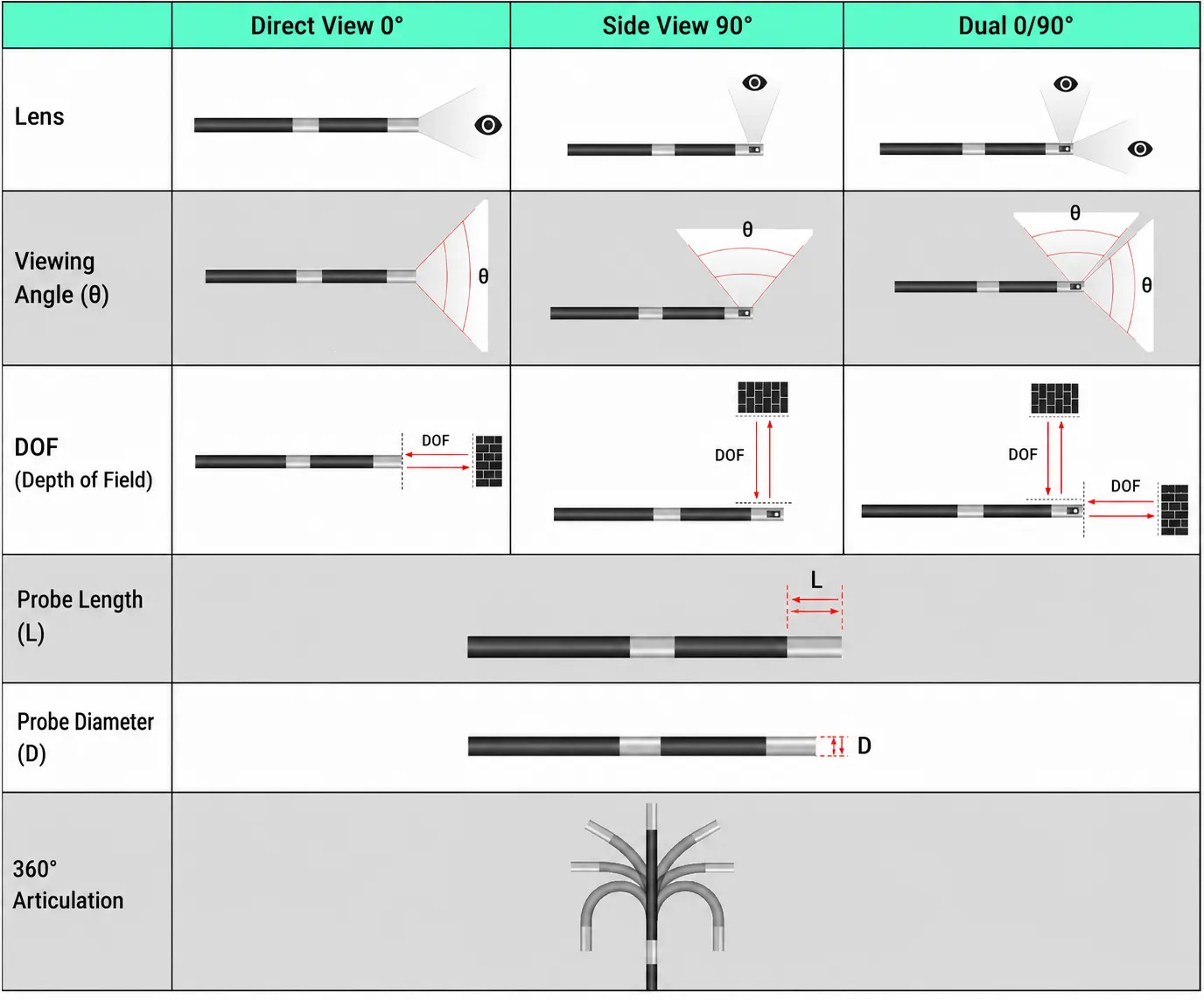

Lenses & viewing directions
Here is a selection of the most common models:
Different probes & lengths
We have different probes and lengths that can be used depending on the area of application. These probes make it possible to inspect even hard-to-reach areas and take detailed images. The different lengths of the probes ensure that even deeper areas can be reached in order to carry out a comprehensive inspection. Further details can be found in our product range.
Technical Data |
Device (handset + display)Size: 350x155x59mm Display: 5-inch FHD Resolution: 1980x1080 P Slots: Micro SD card (up to 32GB), HDMI, Micro USB Operation: >4h, special rechargeable lithium battery, mains connection IP protection class: IP54 Operating temperature: -20°C~50°C Ambient temperature: -20°C~60°C Relative humidity: Max 90%, no condensation Weight: ≤0.8kg (weight with battery) |
SystemOperating system: Multifunctional Operation: Navigation buttons, two camera and video buttons Recording: Image: JPEG / Video: AVI Image control:
|
LensField of view (DoV): direct 0° / side view 90° / dual 0° and 90° Field of view (FoV): 90° / 120° Depth of field (DoF): 3-30mm / 7-150mm / 12-200mm / 50- Pixels: 1 megapixel Illumination system: Fiber optics. Light/illumination: White light Illumination type: Indirect |
ProbeLength: 1m – 10m Diameter: 0.8 – 8.0mm Direction of movement: 360° articulation Lighting system: Fiber optics. *Reverse transmission of high-performance LED signals via fiber optic cables. Light/illumination: White light IP protection class: IP67 Operating temperature: -20°C~70°C Material: Flexible (tungsten wire mesh) Special feature: Replaceable probe |
Scope of delivery
|
